MR Designer is a Mixed Reality applications for creating 3D models using a Valve Index.
# Requirements
-
Valve Index,
[
Steam VR
](
https://www.steamvr.com
"Steam VR"
)
-
[
OpenXR SteamVR Passthrough API Layer
](
https://github.com/Rectus/openxr-steamvr-passthrough/releases
)
-
[
Unity 2021.3.5f1
](
https://unity.com/releases/editor/whats-new/2021.3.5
"Unity 2021.3.5f1"
)
# Usage
-
[
configure the Passthrough API
](
https://github.com/Rectus/openxr-steamvr-passthrough#usage
"configure the Passthrough API"
)
-
open the unity project with the unity editor and click play
-
create a 3D Model in VR
-
first add 4 starting nodes
-
then select your desired mode on the menu
-
the menu is attached to your left controller
-
buttons are pressed with the right controller
-
apply the actions to the model using the
\"
trigger
\"
button
-
connect requires you to hold the button until 3 or 4 nodes are marked
-
adding or deleting is applied after release
-
a preview node helps selecting triangles for deletion
-
the reset button requires continuously pressing for 1 seconds
-
Export the model using the FBX exporter
-
select the
\"
3D-Model
\"
GameObject
-
delete all childobjects
-
rightclick the
\"
3D-Model
\"
and select
\"
Export to FBX...
\"
-
click
\"
Export
\"

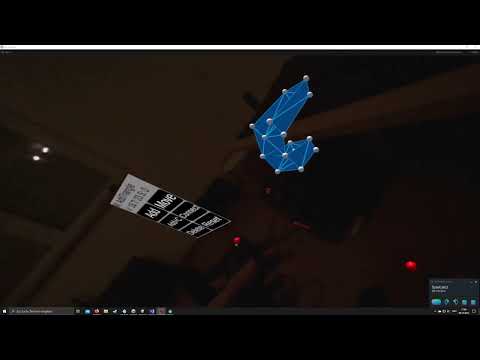

# Demo video
[

](http://www.youtube.com/watch?v=MA0ZtmunfoY "MR 3D-Model Designer")
